Diesel tsav lub tshuab hluav taws xob teeb rau cov ntawv thov hauv Cheeb Tsam Kev Nyab Xeeb (Zoo 2) mounted hauv DNV ntawv pov thawj 2.7-1 Skid thav duab enclosure tsim 375CFM Explosion-proof Air Compressor

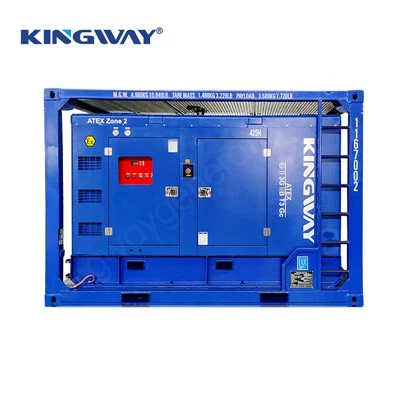

375CFM Zone 2 Hazardous Area Diesel Air Compressor yog ib qho loj - tawg tawg- pov thawj khoom siv rau siab - cov xwm txheej txaus ntshai xws li cov roj thiab roj thiab cov nroj tsuag tshuaj. Nws tuaj yeem muab cov kev pabcuam customized thiab cov khoom siv cua tshwj xeeb raws li kev ua haujlwm sib txawv. Nrog rau kev hloov pauv huab cua ntawm 375CFM thiab hloov siab, nws tuaj yeem muab cua rau ntau lub siab - lub zog pneumatic khoom ib txhij, thiab nws cov kev ua tau zoo yog ntau dua 50% siab dua qhov me me - cov qauv hloov pauv ntawm tib theem. Ua raws li cov qauv thoob ntiaj teb xws li IECEx thiab ATEX, nrog rau GB 3836 tawg hauv tsev - cov ntaub ntawv pov thawj, lub compressor yog nruab nrog ib tug patented ntxaib - ntsia hlau airend thiab siab - lub zog diesel cav, featuring tsis tshua muaj zog noj, durability, thiab adaptability mus rau plua plav 5 mus rau 9℃2. degree. Nws yog ib qho kev xaiv huab cua zoo rau kev ua haujlwm loj - nyob rau hauv cov xwm txheej uas muaj kev pheej hmoo siab.
|
Qauv |
DLQ375-EX |
|
Ua kom tiav tshuab |
|
|
Kev tawg- pov thawj Mark |
|
|
Cheeb tsam xwm txheej |
ZONE 2 |
|
Daim ntawv pov thawj |
《Kev tshaj tawm ntawm kev sib haum xeeb nthuav qhia |
|
Nominal Volume Peev Xwm (m³ / min / cfm) |
10.6/ 375 |
|
Rated Tawm Siab (bar / psi) |
6.9 /100 |
|
Ua Haujlwm Siab Ntau Yam (bar) |
5.5-6.9 |
|
Lub suab nrov (± 3 dBA ntawm 7m) |
76 |
|
Tshuab Luj (kg / lbs) |
3000 (hli) |
|
Medidas: L x W x H mm |
3048X1800X1800 |
|
Specification ntawm Air Supply Valve |
1-Rp1/2",1-Rp3/4",1-Rp 1 1/4" |
|
DIESEL ENGINE |
|
|
Chaw tsim tshuaj paus |
CUMMINS |
|
Qauv |
6 BT5.9-C |
|
Puv -load ceev (rpm) |
2250 |
|
Rated zog (kW/bhp) |
86/115 |
|
Kev tshem tawm (L) |
5.9 |
|
Cav Roj Peev Xwm (L) |
13 |
|
Tag nrho -Load Roj noj (L/h) |
17.9 |
|
Hluav taws xob qhov system Voltage (V) |
24 |
|
Rated Peev Xwm ntawm Roj Teeb |
180Ah/ua |
II 3G IIB T3 Gc
Peb muab 375CFM Zone 2 Hazardous Area Diesel Air Compressor, ib qho loj - tawg tawg- cov khoom pov thawj uas ua raws li IECEx, ATEX thoob ntiaj teb cov qauv thiab GB 3836 ntawv pov thawj. Nws yog qhov tsim nyog rau siab - cov xwm txheej txaus ntshai xws li thaj chaw roj thiab roj, cov nroj tsuag tshuaj, thiab cov mines. Nruab nrog ib tug patented ntxaib - ntsia hlau airend, lub compressor nta qis zog noj thiab adjustable siab, muaj peev xwm muab cua rau ntau yam pneumatic khoom ib txhij. Peb kuj muab cov kev pabcuam customized thiab cov kev daws teeb meem tshwj xeeb rau huab cua, ua rau nws xaiv qhov kev xaiv huab cua zoo rau kev ua haujlwm loj hauv - thaj chaw muaj kev pheej hmoo.
