Diesel tsav lub tshuab hluav taws xob teeb tsa rau cov ntawv thov hauv Cheeb Tsam Kev Nyab Xeeb (Tebchaws 2) mounted hauv DNV ntawv pov thawj 2.7-1 Skid thav duab enclosure ua 1000KVA @ 0.8 pf, 400VAC, 3 Theem + Nruab Nrab, 60HZ Output
Quality & Ua raws li:
Cov khoom lag luam Ex yuav ua raws li ATEX tus qauv EN 60079 series thiab EN 1834 series, thiab yuav muab ib daim ntawv tshaj tawm ntawm kev sib haum xeeb uas tau kos npe los ntawm cov chaw tsim khoom raws li ATEX Standard EN 1834-1.
Lub 1000KVA Zone 2 Hazardous Area Diesel Generator yog qhov siab - kev ntseeg tau thaum muaj xwm txheej ceev thiab cov khoom siv hluav taws xob tseem ceeb tshwj xeeb tsim los rau qhov chaw tawg thiab tawg. Nws yog qhov tseem ceeb- yoog raws li qhov yuav tsum tau ua nruj me ntsis ntawm Zone 2 thaj chaw muaj kev phom sij (qhov twg tsis muaj cov roj sib tov sib xyaw ua ke thaum lub sijhawm ua haujlwm ib txwm muaj thiab tsuas muaj nyob luv luv hauv cov xwm txheej txawv txav).
Nruab nrog kev tawg- pov thawj pov thawj lub zog, lub tshuab hluav taws xob no siv lub tshuab ua haujlwm siab - xws li Cummins KTA38-G5. Los ntawm ob lub-tswj dual- lub voj voog cua txias thiab dej-tso cua txias turbine vaj tse tsim, qhov kub ntawm tag nrho cov chav tsev yog nruj me ntsis tswj hauv qab 200℃. Ua ke nrog cov qauv Ex d flameproof thiab nce- cov khoom siv hluav taws xob muaj kev nyab xeeb, nws ua tau raws li ATEX 94/9/EC cov lus qhia thiab GB 3836 series tawg- cov qauv pov thawj, nrog rau qhov ntsuas tawg ntawm II 3G IIB T3 GC.
Nws muaj cov zis tawm ntawm 1000KVA, txhawb 50/60Hz zaus thiab 400/480V voltage tswj. Nruab nrog Stanford lossis Leroy-Lub tshuab hluav taws xob tsis muaj txhuam tsis zoo thiab DeepSea/Comap ntse tswj qhov system, qhov kev tswj qhov hluav taws xob zoo li qub yog Tsawg dua lossis sib npaug li 1%. Nws tuaj yeem paub lub tswb tsis siv neeg thiab kaw kev tiv thaiv rau ntau yam kev ua txhaum xws li roj qis, overtemperature, thiab overcurrent.
Cov cuab yeej siv los tiv thaiv- tsim corrosion nrog lub plhaub stainless hlau thiab electrophoretic txheej bracket, ncav cuag IP65 tiv thaiv qib. Nws tuaj yeem hloov mus rau qhov hnyav ib puag ncig nrog muaj zog corrosion thiab siab plua plav, xws li kev lag luam tshuaj lom neeg thiab offshore platforms. Lub caij no, nws tau dhau BV thib peb-kev sim tog thiab DNV 2.7-1 tiv thaiv- daim ntawv pov thawj daim ntawv pov thawj, ua kom muaj kev nyab xeeb, ruaj khov, thiab ua haujlwm ntev hauv thaj chaw muaj kev phom sij.
|
Ua kom tiav tshuab |
|
|
Kev tawg- pov thawj Mark |
|
|
Cheeb tsam xwm txheej |
ZONE 2 |
|
Daim ntawv pov thawj |
《Kev tshaj tawm ntawm kev sib haum xeeb nthuav qhia |
|
Cov khoom tsim tawm tsim tawm (0.8 pf 25ºC) |
800KVA 480V / 60HZ (tsim) |
|
DIESEL ENGINE |
|
|
Chaw tsim tshuaj paus |
CUMMINS |
|
Qauv |
KTA38-G4 |
|
Kev ceev ceev (rpm) |
1800 |
|
Standby zog (kW) |
1007kW @ 1800RPM ua ntej tawg- pov thawj Hloov |
|
Kev tshem tawm (L) |
38L |
|
No. ntawm lub tog raj kheej |
12 |
|

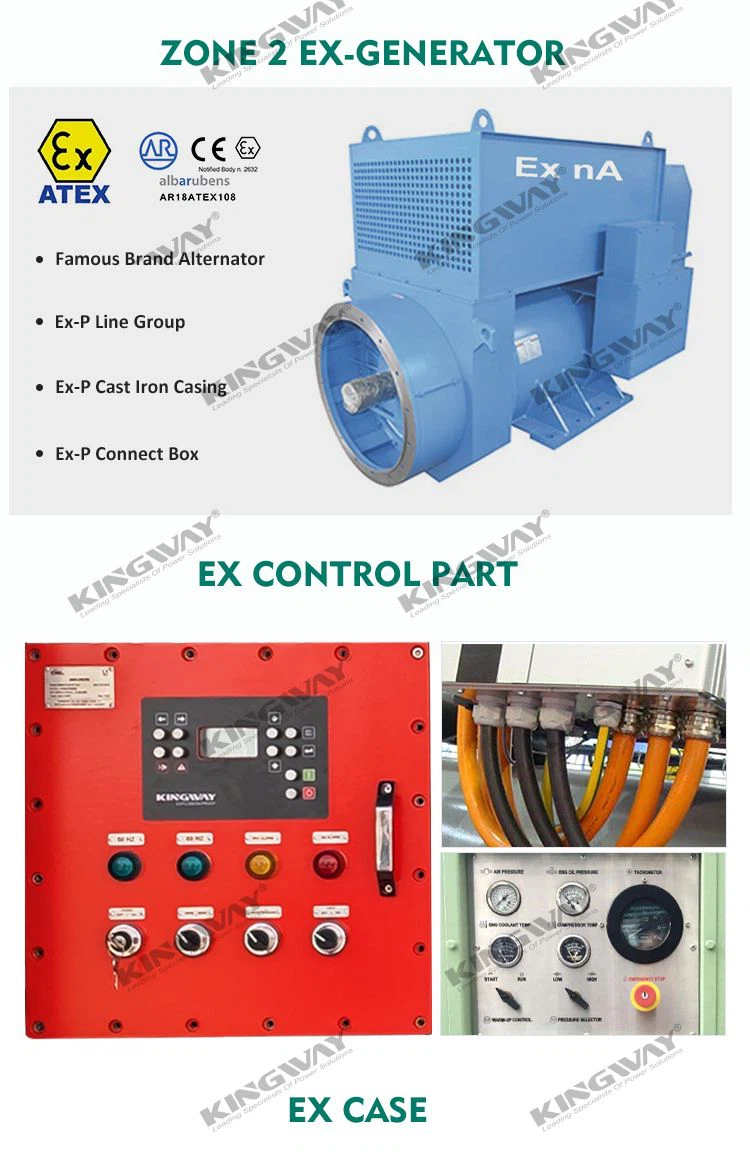

GENERATORS |
|
|
Chaw tsim tshuaj paus |
Kingway OEM (Original chaw tsim tshuaj paus: Stamford) |
|
Kev tawg- pov thawj Mark |
|
|
Daim ntawv pov thawj naj npawb |
《Kev tshaj tawm ntawm kev sib haum xeeb nthuav qhia |
|
Cheeb tsam xwm txheej |
ZONE 2 |
|
Ambient kub |
-25℃~ +60 degree |
|
Qhov siab |
Tsawg dua lossis sib npaug li 1000M |
|
Rated Voltage |
480V (60HZ) |
|
Rated Zaus |
60 tzs |
|
Rated REV |
1800 RPM |
|
Hwj chim Factor |
0.8 LOJ |
|
Kev ua haujlwm |
Nruam (S1) |
|
IP Qib |
IP44 |
|
Tus tswj |
KomAp |
II 3G IIB T3 Gc
II 3G Ex nA IIB T3 IP23
